Chief Hydraulic Cylinders Catalog
Built by Bailey Hydraulics to dominate the most demanding environments, Chief Hydraulic Cylinders deliver 3000 PSI of double-acting power through precision-engineered welded and tie-rod designs. These industry-leading components feature American-made seals and nitrided steel rods to ensure your machinery stays in motion long after the competition fails. Innovation meets versatility in the patented WX series, where 360° rotating glands solve your toughest plumbing challenges in tight spaces. Every Chief cylinder undergoes rigorous 1.5x pressure testing and carries a three-year warranty, providing the ultimate peace of mind for heavy-duty loader and industrial applications.
Top Chief Hydraulic Cylinders
Chief WX Welded Rotating Gland
This patented cylinder is a favorite for custom builds and tight spaces because it features a 360° rotating gland that allows for effortless port alignment and hose routing.

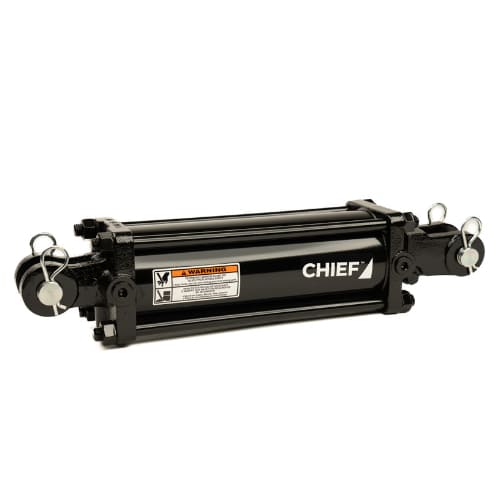

Chief TC3 Tie-Rod Cylinder
Considered the reliable workhorse of the brand, this double-acting cylinder is widely used in agriculture and recycling for its durable ductile iron components and easy maintenance.

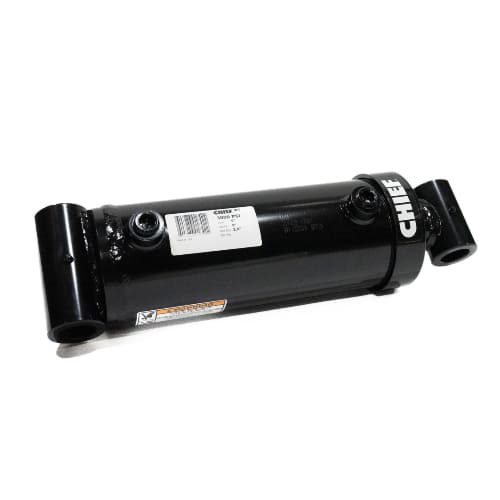

Chief WT Welded Cross Tube
Designed for the most demanding heavy-duty loads, this model features robust cross-tube mounts with integrated grease zerks to ensure maximum structural strength and long-term pivot point lubrication.
Chief Hydraulic Cylinders represent the pinnacle of Bailey International’s engineering, offering a diverse fleet of welded and tie-rod solutions built to withstand the rigors of mobile equipment and heavy industry.
High-Performance Product Categories
Explore a comprehensive lineup of hydraulic power solutions designed to meet the exact specifications of your machinery and workload.
Welded Series (WT, WC, WTG)
These cylinders provide a rugged, compact solution for heavy-duty applications, utilizing cross-tube, clevis, and tang mounts to ensure structural integrity under maximum load.
Tie-rod Series (TC3 & AT)
Engineered for easy maintenance and versatility, the TC3 and AT series offer a standardized design that excels in industrial environments requiring precise fluid power control.
Specialty Cylinders (Telescopic, TCR, LD)
From the multi-stage reach of telescopic models to the synchronized precision of rephasing cylinders and loader-specific variants, these specialized tools are tailored for construction and agriculture.
Customer Success Stories
Samuel Henderson “After switching our entire fleet of loaders to the Chief LD series, we noticed an immediate decrease in downtime; the nitrided steel rods have resisted pitting even in the highly corrosive environment of our coastal construction sites. The installation was seamless, and the performance at 3000 PSI remains consistent even during twelve-hour shifts in the peak of summer.”
Marcus Thorne “The WX series has been a game-changer for our custom agricultural rigs where space is at a premium, as the 360-degree rotating gland allowed us to route our hydraulic lines without the usual kinking or complex elbow fittings. We’ve pushed these cylinders through over two thousand cycles under heavy load, and the Hallite seals haven’t leaked a single drop, proving the build quality is far superior to the cheaper alternatives we previously used.”
Elena Rodriguez “As a fleet manager for a large-scale material handling operation, the 3-year warranty on the Chief TC3 tie-rod cylinders gave us the confidence to invest, but the actual durability of the ductile iron pistons is what sold us. We recently tore one down for a routine inspection after a year of heavy use in our recycling plant, and the precision-honed steel tubes showed virtually no signs of wear or scoring.”
Chief FAQ
What makes the WX series unique compared to other welded cylinders?
The patented WX series features a 360-degree rotating gland that allows for effortless port alignment, making it the ideal choice for compact installations where hydraulic hose routing is restricted.
Can these cylinders be used for single-acting applications?
While Chief cylinders are primarily designed for double-acting excellence with power in both directions, they can be used in single-acting setups by plumbing only one port and installing a breather in the other, provided the application allows for gravity or spring return.
What is the significance of the 1.5x pressure testing?
Every Chief cylinder is factory-tested at 1.5 times its rated 3000 PSI operating pressure (reaching 4500 PSI) to ensure there are no structural defects or seal leaks before the product reaches the field.
How do I identify the correct replacement part number?
The part number is typically stamped directly onto the barrel of the cylinder near the base or rod end and usually consists of a 6-digit code that can be cross-referenced in the Bailey electronic catalog.
Are the seals compatible with synthetic hydraulic fluids?
Standard Chief cylinders utilize high-quality Buna-N and Hytrel seals designed for mineral-based oils; however, if your system uses specific synthetic or fire-resistant fluids, you should verify compatibility to prevent premature seal swelling or degradation.
Why does a cylinder “drift” or move slowly when the valve is in neutral?
Cylinder drift is often caused by internal bypass leakage across the piston seals or air trapped in the system; this can usually be resolved by bleeding the air out or replacing the Hallite piston seals if they have become worn.
What is the benefit of the nitrided steel rod over standard chrome plating?
Nitriding provides a surface that is harder and more corrosion-resistant than traditional chrome, which prevents pitting and scoring in harsh environments like salt-treated roads or humid agricultural fields.
